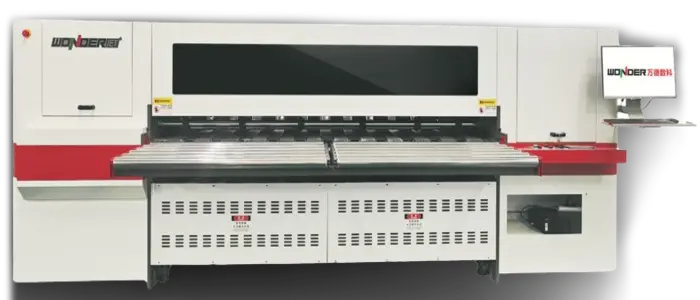

Multi Pass – Water-based Ink

Email us to order
WD250-8A+WD250-16A++WD250-16A+WD250-32A++
Printhead Quantity8161632
Resolution≥360*600 dpi≥360*1200 dpi≥360*600 dpi≥360*1200 dpi
EfficiencyMax 700m2/hMax 700m2/hMax 1400m2/hMax 1400m2/h
Power~12KW~14KW~18KW~18KW
Min Width350mm420mm600mm600mm
Min Length450mm420mm350mm350mm
Weight3000 kgs3000 kgs5500 kgs5500 kgs

Printing Configuration

  • Printhead: Industrial mirco-piezo printhead
  • Printing width: 2500mm
  • Ink type: Special water-based dye ink, special water-based pigment ink
  • Ink color: Cyan, Magenta, Yellow, Black; Optional: LC, LM, PL, OR
  • Ink supply: Automatic ink supply
  • Input format: JPG, JPEG, PDF, DXF, EPS, TIF, TIFF, BMP. Al, etc.

Printing Material

  • Application: All kinds of corrugated cardboard (yellow and white cattle board, honeycomb board, etc.), available to print semi-coated board with dryer
  • Max width: 2500mm
  • Max length: 2200mm under auto feeding, no limit under manual feeding (Cardboard stack weight affects autofeed length)
  • Thickness: 1.2mm-35mm(max can be ordered to 50mm)
  • Feeding system: Automatic leading edge feeding, default pressure roller platform and suction platform

Workplace Environment

  • Temperature: 20°C-25°C
  • Humidity: 50%-70%
  • Power supply: AC380+-10%. 50-60HZ
  • Air supply: 6kg-8kg

Others

  • Machine size: 3139*4662*1587 (mm), 4850*6100*1751(mm)
  • Optional: Variable data, ERP docking port
  • Voltage stabilizer: The voltage stabilizer needs to be self-configured, request 50KW
